The trailer connector is the link between your tow vehicle's electrical system and the trailer. On a small trailer it only runs lights. On a camper or a heavy trailer it also controls the brakes and keeps the trailer battery charged. The two plugs you will see most often are the 4 pin flat and the 7 pin RV blade. This guide explains what each pin does, shows the common 7 pin wiring color code, and walks through adapters, upgrades, and troubleshooting.
4 Pin vs 7 Pin at a Glance
| Feature | 4 pin flat | 7 pin RV blade |
|---|---|---|
| Ground | Yes | Yes |
| Tail and running lights | Yes | Yes |
| Left turn and brake light | Yes | Yes |
| Right turn and brake light | Yes | Yes |
| Electric trailer brakes | No | Yes |
| 12V auxiliary (battery charge, interior lights) | No | Yes |
| Reverse (backup) lights | No | Yes |
| Typical wire size | About 16 to 18 gauge | About 10 to 12 gauge on brake and 12V circuits |
| Typical trailers | Utility, small boat, motorcycle, small cargo | Travel trailers, toy haulers, car haulers, horse and equipment trailers |
Wire sizes are typical; check the harness you buy.

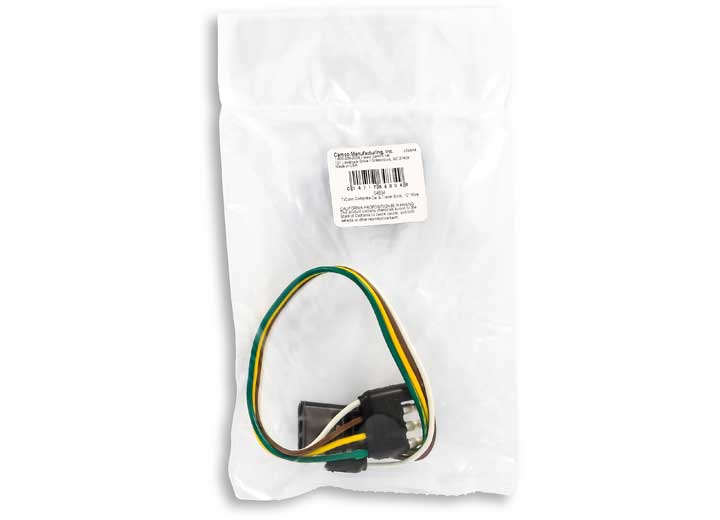

4 Pin Flat Connector
The 4 pin flat is the simplest and most common trailer connector. It carries only the lighting circuits required by law, which is all a light trailer without its own brakes needs.
| Pin function | Typical wire color |
|---|---|
| Ground | White |
| Tail and running lights | Brown |
| Left turn and brake | Yellow |
| Right turn and brake | Green |
On a 4 pin system, the turn signal and brake light share the same wire on each side. Because the wires are light gauge, a 4 pin cannot carry the current needed for electric brakes or battery charging.
7 Pin Trailer Connector (7-Way RV Blade)
The 7-way RV blade is the standard connector for campers and most trailers with electric brakes, and it is what most factory tow packages on pickups and full-size SUVs include. Its flat blades are arranged in a circle around a center pin.
7 pin trailer wiring color chart
| Circuit | Common trailer-side wire color | What it does |
|---|---|---|
| Ground | White | Return path for every circuit |
| Electric brakes | Blue | Carries the brake controller's output to the trailer brakes |
| Tail and running lights | Green | Powers marker and tail lights |
| 12V auxiliary (hot lead) | Black (sometimes red) | Charges the trailer battery, powers interior lights or a breakaway battery |
| Left turn and brake | Red | Left turn signal and brake light |
| Right turn and brake | Brown | Right turn signal and brake light |
| Reverse (backup) | Yellow, often on the center pin | Backup lights, or reverse lockout for surge brakes |
This is the RV industry color code that most trailer manufacturers use. Vehicle-side harnesses often use different colors, and older or homemade trailers may not follow it at all. Notice that brown means running lights on a 4 pin but right turn on a 7 pin, a common source of wiring mix-ups. Always confirm each circuit with a circuit tester or the labels molded on the back of the connector before you crimp anything.
Why the 7 pin matters for heavier trailers
Most states require trailers above a set weight to have their own brakes, commonly somewhere between 1,500 and 3,000 lb depending on the state. Electric brakes need a signal from the tow vehicle, and only the 7 pin blue wire provides it. That signal comes from a brake controller mounted in the cab; the connector carries the signal but does not control the brakes on its own. See do I need a brake controller for the weight rules and controller types.
Other Connector Types You May See
| Connector | Extra function over 4 pin | Typical use |
|---|---|---|
| 5 pin flat | One extra pin, usually reverse lockout for surge brakes | Boat trailers with hydraulic surge brakes |
| 6 pin round | Electric brakes and a 12V auxiliary line | Older campers, some utility and horse trailers |
| 7 pin RV blade | Brakes, 12V auxiliary, and reverse | Most campers and braked trailers today |
| 7 pin round | Similar circuits on round pins | Agricultural, commercial, and some older trailers; not interchangeable with RV blade |
Which Connector Do You Need?
- Light utility, jet ski, small boat, or motorcycle trailer with no brakes: a 4 pin is enough.
- Boat trailer with surge brakes: a 5 pin, so backing up does not engage the brakes.
- Any trailer with electric brakes: a 7 pin plus a brake controller.
- Camper with an onboard battery: a 7 pin, so the 12V auxiliary line can charge it while you drive.
- You want backup lights on the trailer: a 7 pin.
Worked Example: Upgrading a Truck From 4 Pin to 7 Pin
Say your pickup has only a 4 pin plug and you just bought a 6,000 lb travel trailer with electric brakes and a 7-way plug.
- Check the hitch first. A 6,000 lb trailer needs a receiver rated for the load; see the trailer hitch classes guide or the hitch class for a 7,000 lb trailer if you are near that weight.
- Look for a factory 7-way. Many trucks with a factory tow package already have a 7-way socket, sometimes capped or tucked behind the bumper, plus a brake controller plug under the dash.
- If there is no factory 7-way, install a 4-to-7 wiring kit that adds a fused 12V line from the battery, a brake circuit to the cab, and a reverse lead. A plug-in adapter alone will not do this.
- Install and set a brake controller. Adjust the gain with the trailer loaded so the trailer brakes firmly without locking.
- Test every circuit: running lights, both turn signals, brake lights, reverse, the 12V charge line, and the brakes, using the controller's manual override at low speed.
Our trailer wiring and brake controllers guide covers harness types and controller choices in more detail, and you can find hitches and towing parts in the towing and hitches section.
How to Test a 7 Pin Connector
A simple 7-way circuit tester that plugs into the vehicle socket is the quickest way to check the vehicle side. Each circuit has its own light, so you can work through the functions one at a time:
- Turn on the headlights or parking lights and confirm the running light circuit.
- Activate each turn signal and press the brake pedal, confirming left and right separately.
- Shift into reverse with the engine running (parking brake set) to check the reverse circuit.
- Check the 12V auxiliary circuit with the engine running; on many trucks it is only live when the ignition is on.
- Use the brake controller's manual lever to confirm a signal on the brake circuit. Some testers show this as a light that brightens as you increase the lever.
If the vehicle side tests good, the problem is on the trailer side: the plug, the trailer wiring, or the trailer ground.
Wire Gauge and Why It Matters
Lighting circuits draw little current, so 16 or 18 gauge wire is typically fine. Electric brakes and battery charging draw much more, commonly 10 to 20 amps or more depending on the number of brake axles and the battery state. That is why quality 7 pin harnesses use heavier wire, typically 10 or 12 gauge, on the brake and 12V circuits. Undersized wire causes voltage drop, which shows up as weak trailer brakes or a battery that never fully charges.
Adapters: What Works and What Does Not
- 7 pin vehicle to 4 pin trailer: works well. A 7-to-4 adapter uses the ground, running, and turn and brake circuits and leaves the rest unused. Many 7-way sockets have a 4 pin plug built into the same unit.
- 4 pin vehicle to 7 pin trailer: an adapter gives you lights only. Brakes, charging, and reverse will not work until the vehicle is wired for them.
- 6 pin or 7 pin round to 7 pin blade: adapters exist, but confirm the pinout, since older trailers vary.
Troubleshooting Trailer Lights
- Bad ground is the number one cause. Make sure the white ground wire is bolted to clean, bare metal on both the vehicle and the trailer frame.
- Corroded or bent pins. Clean the contacts and apply dielectric grease to keep moisture out.
- Blown fuses or relays. Check the trailer lighting and 12V auxiliary fuses in the vehicle fuse box.
- Lights acting strangely, such as all flashing together, usually points to a weak ground or a pinched wire shorting two circuits.
- Brakes not working but lights fine: check the blue wire, the controller connection, and the breakaway switch.
Bottom Line
If your trailer has no brakes and no battery, a 4 pin connector does the job. If it has electric brakes, a battery, or backup lights, you need a 7 pin connector and, for the brakes, a properly set brake controller.
Frequently asked questions
What is the difference between a 4 pin and 7 pin trailer plug?
A 4 pin plug carries ground, running lights, and left and right turn and brake signals. A 7 pin plug carries those four plus electric brakes, a 12V auxiliary line for battery charging, and reverse lights.
What are the wire colors on a 7 pin trailer plug?
On the trailer side, the common RV industry code is white for ground, blue for electric brakes, green for running lights, black for 12V auxiliary, red for left turn, brown for right turn, and yellow for reverse. Vehicle harnesses can differ, so test each circuit before wiring.
Can I use a 4 pin trailer on a 7 pin vehicle?
Yes. A 7-to-4 adapter passes the lighting circuits and leaves the extra pins unused. Many 7-way sockets also include a built-in 4 pin outlet.
Can I tow a 7 pin trailer with a 4 pin vehicle?
Only the lights will work through a simple adapter. To run electric brakes, charging, and reverse, you need to add wiring for those circuits and a brake controller.
Does a 7 pin connector work the trailer brakes by itself?
No. The 7 pin connector carries the brake signal, but a brake controller in the tow vehicle creates and adjusts that signal. Without a controller, electric trailer brakes will not apply.
Why do my trailer lights work intermittently?
The most common cause is a poor ground, followed by corroded or bent pins. Clean the ground connections to bare metal, clean the pins, and use dielectric grease.
