Bad Sway Bar Link Symptoms: Diagnosing and Replacing

Think of the sway bar as a torsion spring. It resists the twisting motion that happens when one side of your suspension compresses more than the other, like when you go around a corner. The sway bar links transfer this resistance from the sway bar to the rest of the suspension. They're basically hinges, allowing for movement while still connecting the pieces. They usually have ball joints or bushings at each end, which are the parts that typically wear out.

Diagnosing a bad sway bar link usually starts with your ears and then moves to your eyes and hands. You'll often hear the problem before you see it.

Listen for noises

The most classic symptom of a worn sway bar link is a clunking or rattling noise. You'll typically hear this when driving over bumps, potholes, or uneven surfaces. It might also show up when you turn the steering wheel sharply at low speeds. The noise comes from the worn ball joint or bushing allowing excess play, causing the link to bang around.

Feel the steering and handling

Beyond the noise, you might notice a change in how your vehicle handles. You could experience more body roll than usual when cornering. The steering might feel looser or less responsive. Sometimes, a bad link can even cause a wandering sensation, making it harder to keep the vehicle in a straight line. This is because the sway bar isn't doing its job effectively, allowing more independent movement between the left and right sides of the suspension.

Perform a visual inspection

This is where you get your hands dirty. Safely lift your vehicle with a jack and support it with jack stands on a level surface. Never work under a vehicle supported only by a jack. Once it's up, remove the wheel. Locate the sway bar link. It's usually a rod connecting the sway bar to the strut or control arm. Look for these signs of wear:

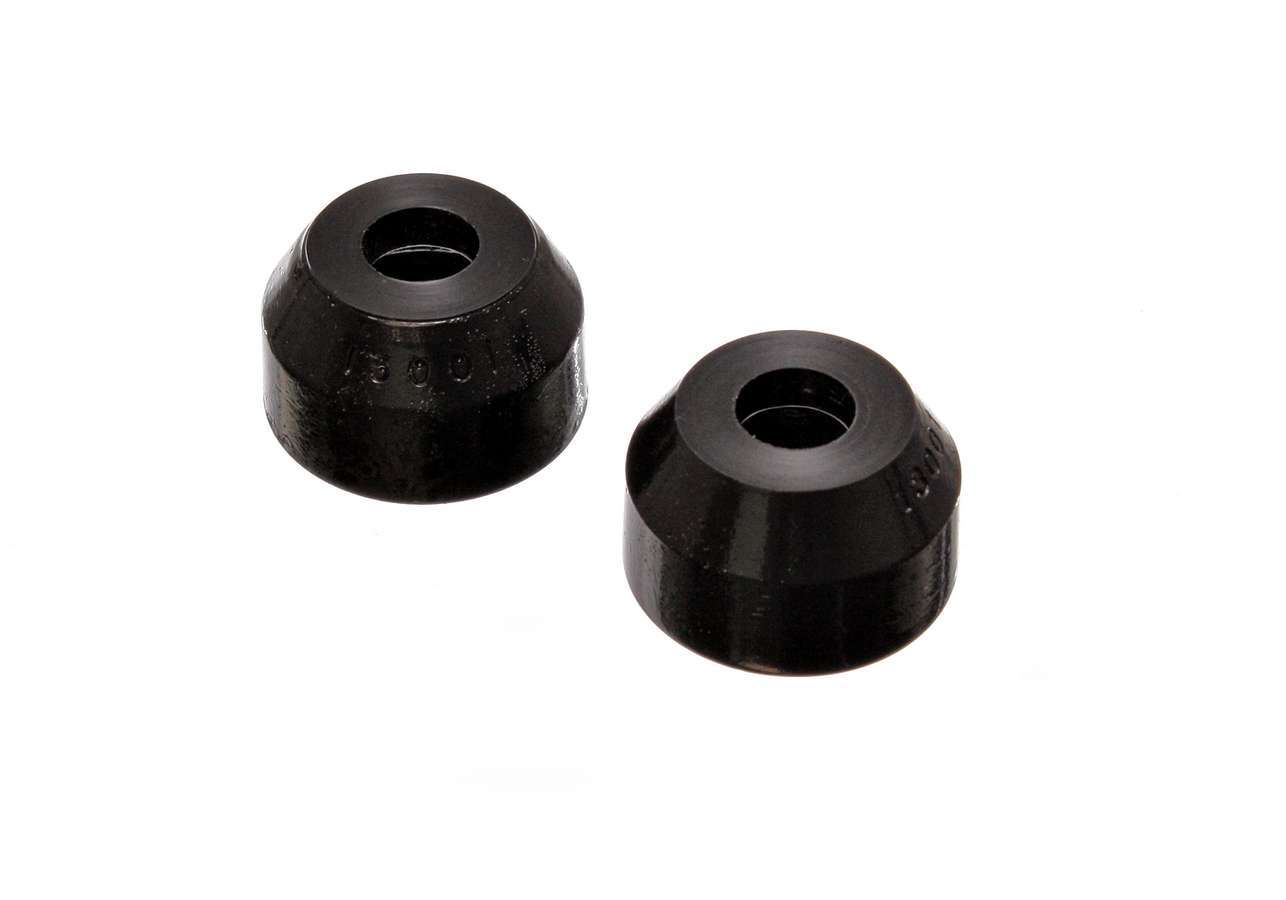

• Torn dust boots: These rubber boots protect the ball joints from dirt and moisture. If they're torn, the grease inside washes out, and contaminants get in, leading to rapid wear. You can see products like the Energy Suspension Universal Round Tie Rod End Dust Boots Set of 2 Black for $5.08 or the Energy Suspension Black Ball Joint Dust Boot for $5.08 if you just need to replace a boot, but often it's too late.
• Rust or corrosion: Excessive rust can weaken the link itself or seize the ball joint.
• Bending: A bent link is a clear sign of impact damage or extreme stress.

Check for play

With the vehicle safely supported and the wheel off, grab the sway bar link firmly. Try to move it up and down, and side to side. You shouldn't feel any significant play or looseness. If you do, that's a strong indicator the ball joint or bushing is worn out. You can also try to replicate the clunking noise by pushing up and down on the sway bar itself, listening for any movement at the link connections. I've seen plenty of vehicles where the link looked fine, but you could feel the slop just by wiggling it. Trust your hands here.

Usually, when a sway bar link goes bad, you replace the entire link assembly. While you can sometimes replace just the bushings or boots, the ball joints themselves are often integrated and not serviceable separately. When you replace one, it's a good idea to replace both on the same axle. They tend to wear at similar rates.

While we don't carry specific sway bar links, we do have other suspension components that might interest you, like the Lippert Components 4-Leaf Double Eye Spring 3000 Pound 2 Inch for $42.39 if you're working on a trailer or the Fabtech Stealth Monotube Shock Absorber Rear for 2007-2018 Jeep Wrangler JK for $89.95 if you're upgrading shocks.

Replacing sway bar links is generally a simple task for someone with basic mechanical skills and tools. However, there are times when taking it to a professional shop makes sense:

• Seized fasteners: If the nuts and bolts are severely rusted and won't budge, a shop will have more powerful tools (like impact wrenches or cutting torches) to deal with them safely.
• Access issues: Some vehicles have sway bar links that are difficult to reach without specialized lifts or tools.
• Lack of confidence: If you're not comfortable working under your vehicle, or you're unsure about any step, it's always better to let a professional handle it. They can also perform an alignment if needed, which isn't usually necessary after just replacing sway bar links, but it's good for peace of mind if other suspension work was done.
• Other suspension problems: If you find other worn components during your inspection, like control arm bushings or ball joints, a shop can address all the issues at once.
