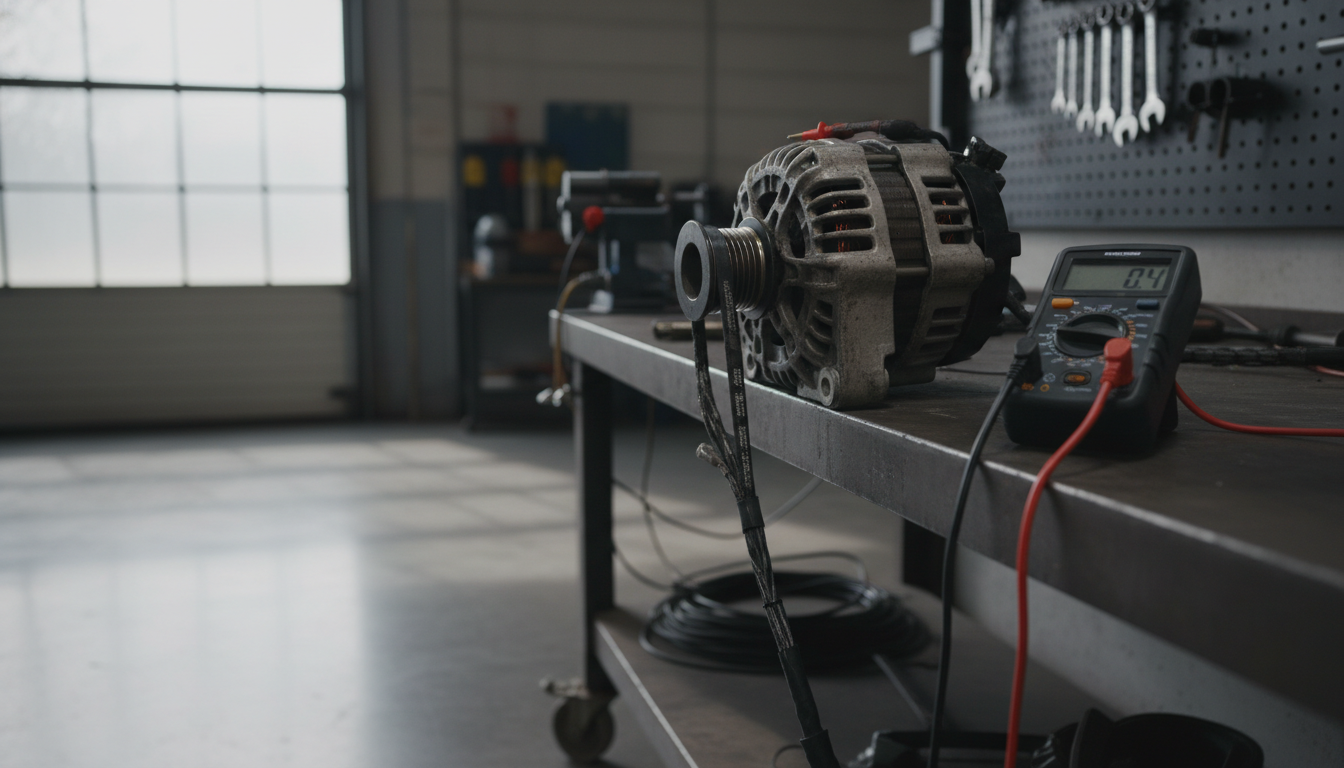

Test Alternator with a Multimeter: A DIY Output Check

Your alternator is the heart of your vehicle's electrical system once the engine is running. It generates power to run everything from your radio to your headlights and, critically, recharges your battery. If it's not doing its job, your battery will slowly drain, eventually leaving you stranded. When you've got a no-start condition or dimming lights, a quick check of the alternator's output with a multimeter is often the first diagnostic step.

This isn't just about avoiding a tow; it's about understanding a core component of your vehicle. A healthy charging system keeps everything running smoothly. A failing one can lead to a cascade of electrical problems, and sometimes, even damage to other components if the voltage is inconsistent.

While testing an alternator with a multimeter is a pretty basic diagnostic, there are times when it's better to let a professional shop handle it. If you're seeing any of these red flags, it's probably best to not mess with it yourself:

• Visible damage to the alternator: If the casing is cracked, wires are frayed, or the pulley is wobbly, it's beyond a simple test.
• Strong burning smell: This often indicates an internal electrical short or overheated components, which can be dangerous.
• Battery acid leaking: A severely overcharging alternator can cause the battery to boil, leading to acid leaks. This is a hazardous situation.
• Smoke coming from the engine bay: Any smoke, especially electrical smoke, means something is seriously wrong and needs immediate professional attention.
• No tools or experience: If you don't have basic hand tools or feel uncomfortable working around a running engine, a shop is a safer bet.

Step 1 — Gather your tools and prepare the vehicle You'll need a digital multimeter, set to DC volts (VDC). Make sure the battery is fully charged or at least has enough juice to start the car. Park your vehicle on a level surface, engage the parking brake, and ensure the engine is off. Safety first, always.

Step 2 — Check static battery voltage Connect the red lead of your multimeter to the positive (+) battery terminal and the black lead to the negative (-) battery terminal. With the engine off, you should see a reading between 12.6 and 12.8 volts. If it's significantly lower, your battery might be discharged or failing, which can impact alternator testing results. A low battery can sometimes trick you into thinking the alternator is bad.

Step 3 — Start the engine and re-check voltage Start your vehicle. Be careful around moving parts like belts and fans. With the engine idling, re-check the voltage at the battery terminals. A healthy charging system should show a reading between 13.8 and 14.7 volts. This indicates the alternator is generating power and sending it to the battery.

Step 4 — Load test the charging system Now, put some electrical load on the system. Turn on your headlights (high beams), the radio, the AC to full blast, and any other electrical accessories. Keep the engine idling and observe the multimeter reading. The voltage might drop slightly, but it should remain above 13.0 volts. If it dips below that, or drops significantly, your alternator is likely struggling under load.

Step 5 — Check for AC ripple (optional, but good practice) Some multimeters have an AC voltage (VAC) setting. If yours does, switch to it and re-test the battery terminals with the engine running and under load. You should see a reading very close to 0 VAC, ideally less than 0.5 VAC. A higher AC voltage reading indicates a problem with the alternator's diode rectifier, meaning it's not converting AC to DC efficiently. I've seen plenty of alternators that put out decent DC voltage but have a high AC ripple, causing all sorts of weird electrical gremlins.

Step 6 — Interpret your readings

• Engine off: ~12.6V-12.8V; Engine on: ~13.8V-14.7V: Your charging system is likely healthy.
• Engine off: low; Engine on: low (no change or slight drop): Your alternator isn't charging the battery. It's probably faulty.
• Engine on: consistently above 15V: Your alternator is overcharging, which can damage your battery and other electrical components. This is just as bad as undercharging.
• Engine on: drops significantly under load: The alternator is weak and can't keep up with demand.

Step 7 — Check connections and belt tension Before you condemn the alternator, double-check all battery cable connections. Make sure they're clean and tight. Then, check the serpentine belt tension. A loose or worn belt can slip, preventing the alternator from spinning fast enough to generate proper voltage. Sometimes, a squealing belt is the first sign of a problem. You might need a Dorman Starter Bolt 3/8-16 x 4-1/2 Inch, available for $5.02, if you're working on a starter and need to ensure good connections there too, though it's not directly for alternator testing.

1. Not checking the battery first: Always check the battery voltage before testing the alternator. A weak battery can lead to false readings.
2. Ignoring the load test: Not putting a load on the system can give you a false sense of security. An alternator may show good voltage at idle but fail under load.
3. Overlooking connections: Loose or corroded battery connections can affect your readings. Always ensure they're clean and tight.
4. Neglecting belt condition: A worn or loose serpentine belt can prevent the alternator from functioning properly. Check for signs of wear or slippage.

This section is not applicable to alternator testing. Alternators are not a wear item with a fixed replacement interval like brake pads. Their lifespan varies widely depending on vehicle use, driving conditions, and manufacturing quality. Common warning signs of a failing alternator include a battery warning light on the dash, dimming headlights, slow accessories, or a dead battery. If you experience these symptoms, perform the multimeter test outlined above to diagnose the issue.
